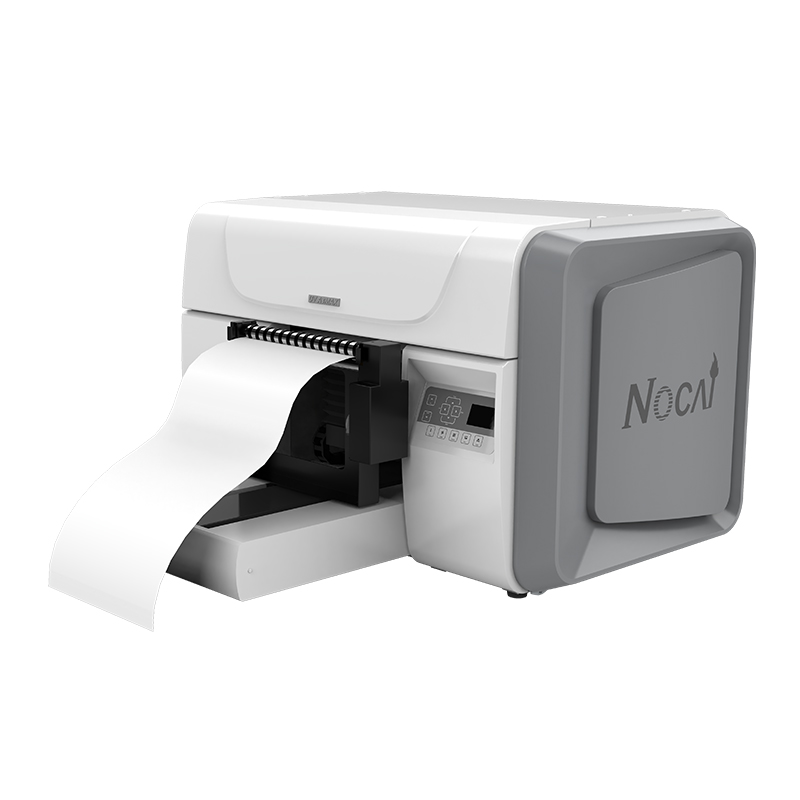

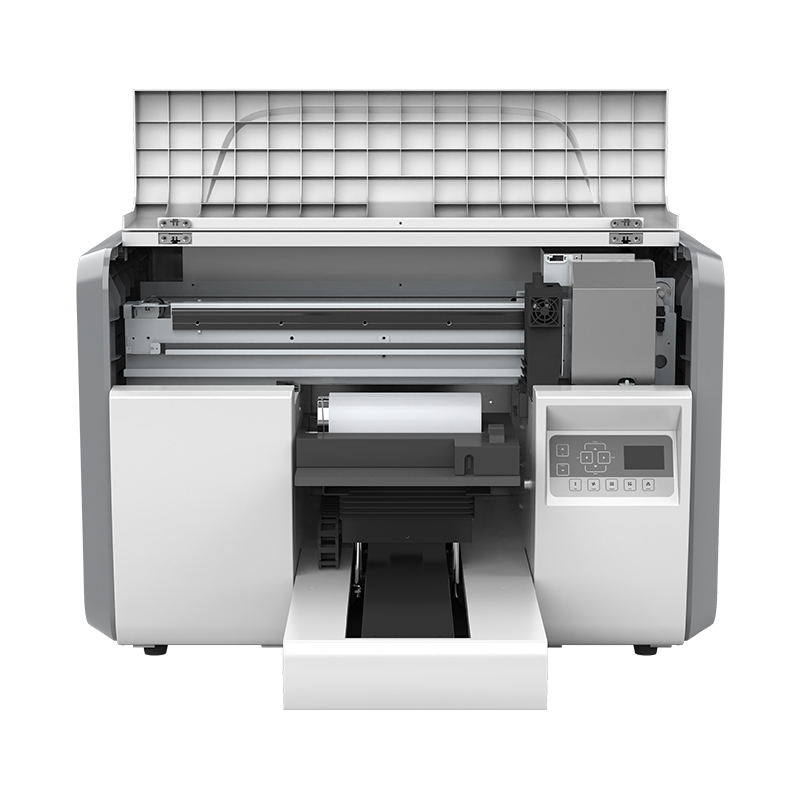

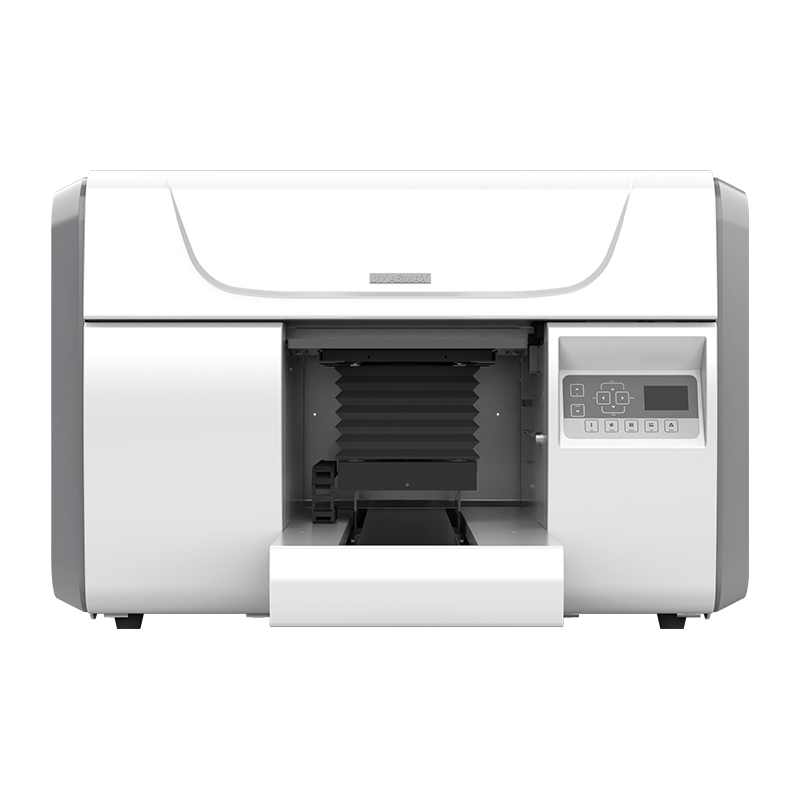

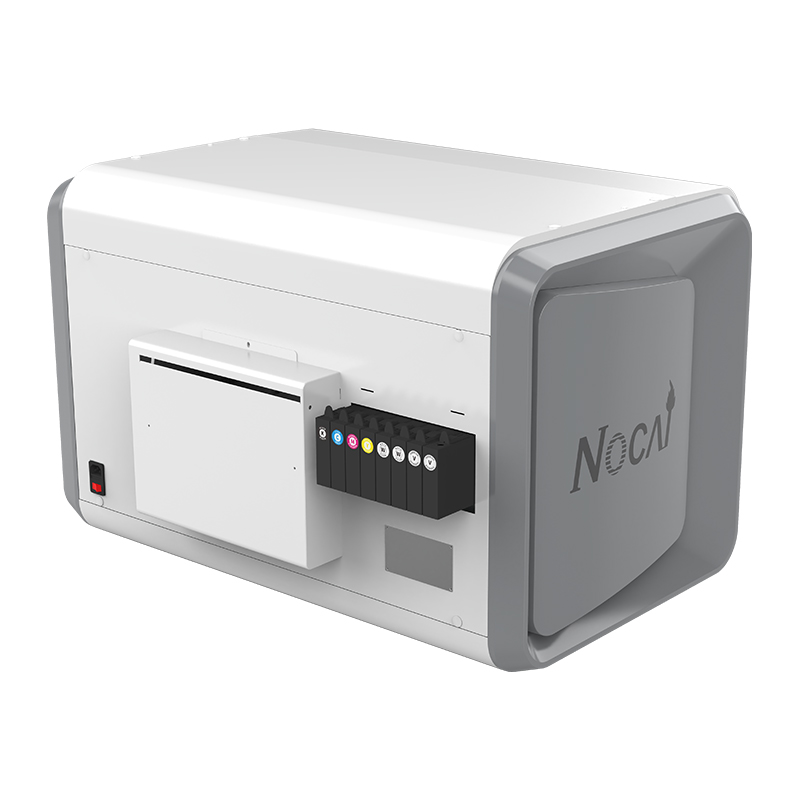

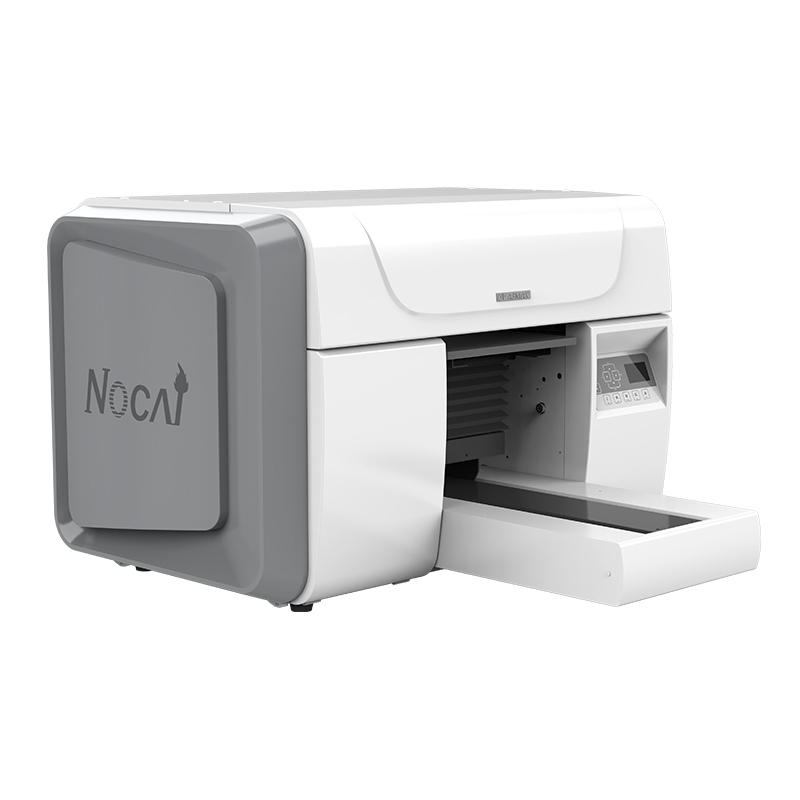

A3 Visual Positioning UV Printer NC-UVA3MAX

Major Advantages

1.1200dpi printing solution reaches the peak resolution of the industry, creating excellent photo quality. 8 ink channels make color configuration more flexible.

2.Its compact design saves space, allowing it to integrate into diverse settings like homes, offices, print shops, retail stores, and tourist attractions seamlessly to meet various needs.

3.Offers flexible color combinations including color, color+white, color+varnish, color+white+color, and white+color+varnish. All effects are achieved in a single pass without multiple steps, and can be easily selected via software.

4.The intelligent system prevents leakage and misoperation. It also features automatic ink circulation and a low-ink alert to prevent sedimentation, ensuring reliable operation and peace of mind.

5.Equipped with high-precision and built-in vision positioning and dedicated jigs for roll-to-roll materials and cylindrical objects, this single machine adapts to multiple applications seamlessly, meeting a wide array of customization needs efficiently .

ADD TO CART

Product Details

A3 Visual Positioning UV Printer NC-UVA3MAX

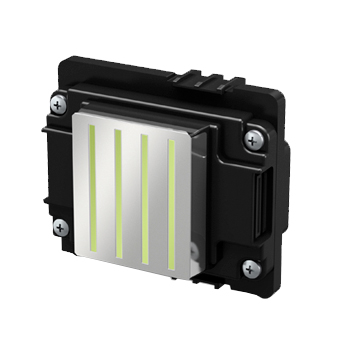

Equipped with an Epson I3200-U1HD print head, supporting white varnish printing.

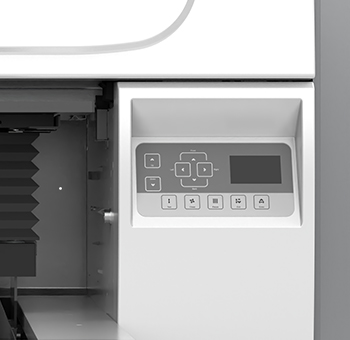

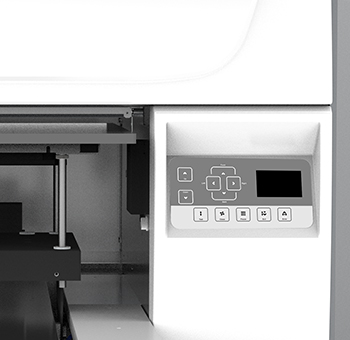

The control panel has various functions and the display is simple and easy to understand.

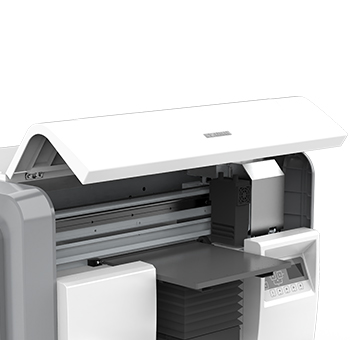

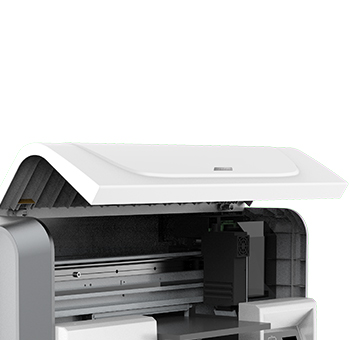

Light-shielding, dust-proof, touch-proof, more safety

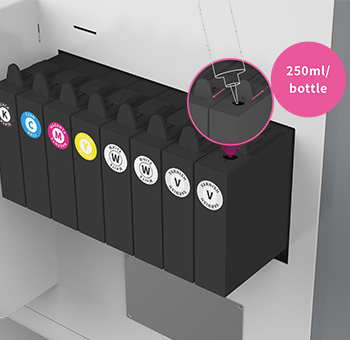

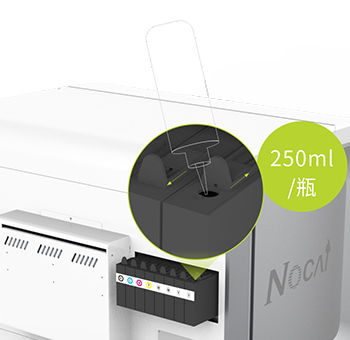

Intelligent ink filling system to prevent ink leakage and wro-ng filling. At the same time, it has the functions of automatic ink circulation and ink shortage alarm to prevent ink precipi-tation, and the intelligent reminder is more convenient.

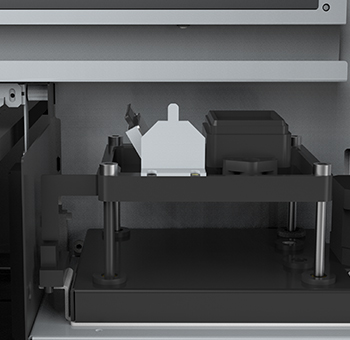

The design of the lifting ink station accurately controls the position of the head sealing and comprehensively protects the print head.

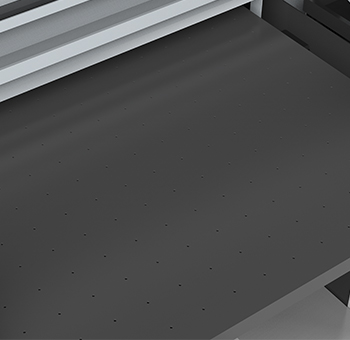

The high-precision honeycomb hard air-suction aluminum platform allows the printed product to be placed flat and better on the platform to ensure the printing effect.

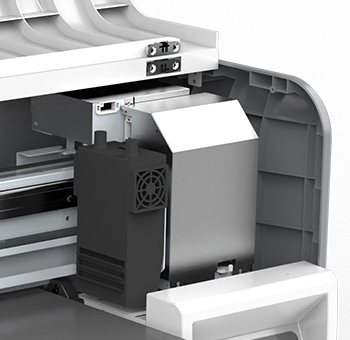

It adopts air-cooled UV lamp, which can automatically adjust the UV lamp power and dry immediately.

Parameter

Print head	Nozzle spray force range	Print size
Epson I3200-U1HD*1	2-3mm	297*420mm
Print height	Print version	Print mode
0-90mm	White and color and varnish print at same time	CMYK+W+V
Print resolution	Printer dimension	N.W.
9601200dpi / 960900dpi	1007mm902mm592mm	78KG
Packing size	G.W.	Rip software
1105mm1025mm775mm	104KG	Future Rip
Print speed	Graphic format	Connection method
0.28-3sqm/h	Tiff/Jpg	Gigabit Ethernet cable
Power	rated power	Working environment
AC220/110V，50HZ/60HZ	140W	Temperature:25℃-28℃ Humidity:35%-65%
operating conditions	Ink type
Avoid dusty environments,Avoid direct sunlight	Environmentally friendly UV curing ink
Optional fixture parameters
Visual positioningdevice
Recognition method	Scanning range(Single-pass)	Positioning accuracy
The beam holds the camera	380*285mm	<0.2mm
Z-axis detection range	Full-area scanning time	Installation method
2.8mm	Approximately 85 seconds	Built-in gantry (with integrated fixture)
Rolling fixture
Material thickness	Roll Paper Specifications	Material length
0.2-0.5mm	Weight:within 10kg;Width:30-250mm;Diameter:within 150mm（three-inch core，75mm）	50m/roll
Round bottle printing speed	packing size	packing weight
7-34 minutes/version	415mm350mm105mm	4.5KG
Electric cylinder fixture
Cylinder diameter	Cylinder length	Applicable material
25-80mm	20-210mm	Paint cup, stainless steel, plastic, glass,ceramic, wood, acrylic, etc.
Round bottle printing speed	packing size	packing weight
5-11minutes/piece	345mm323mm80mm	2.6KG
