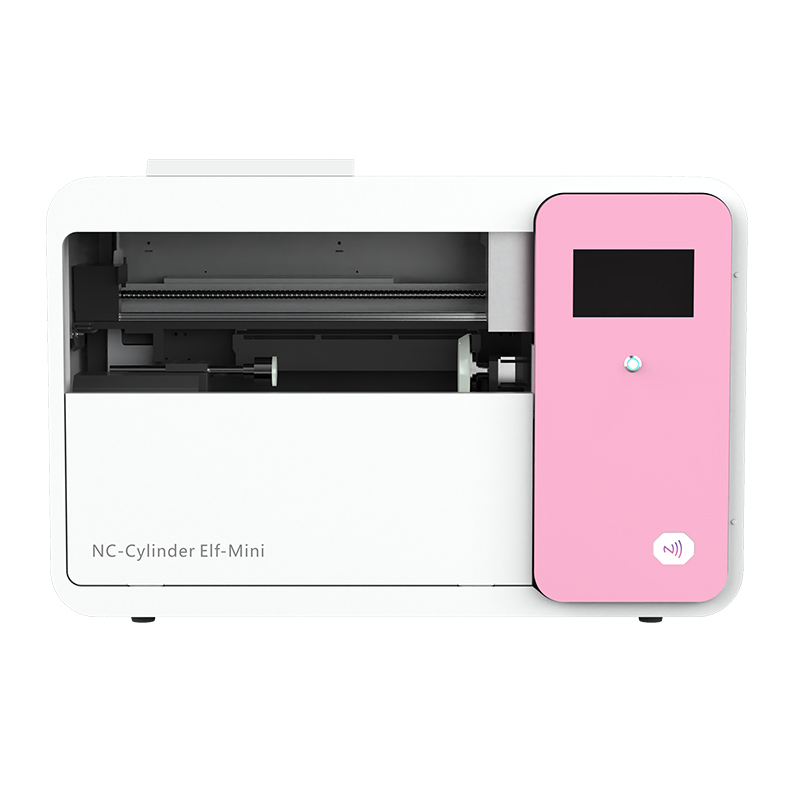

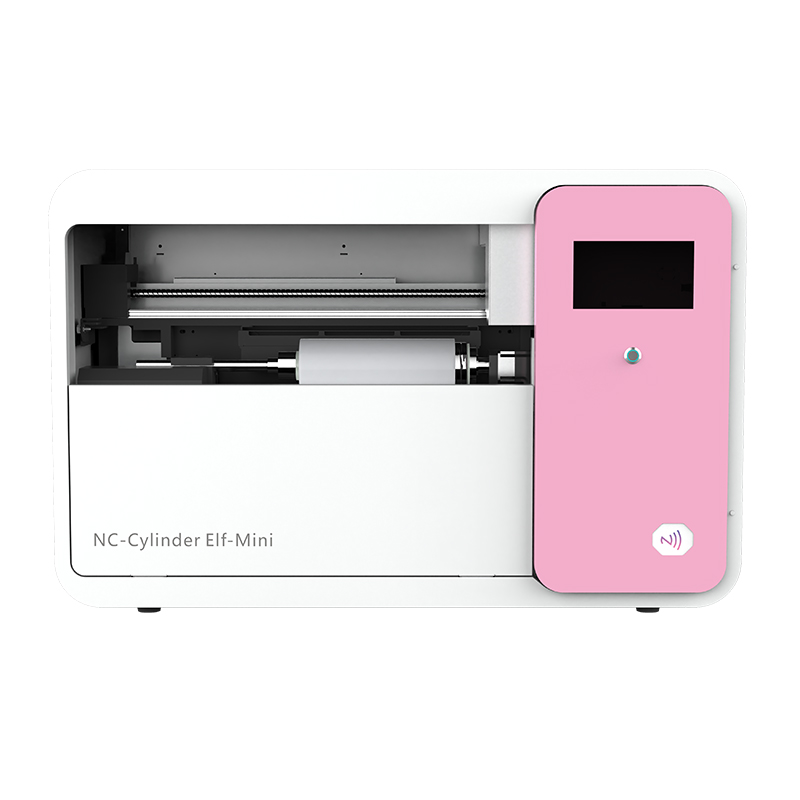

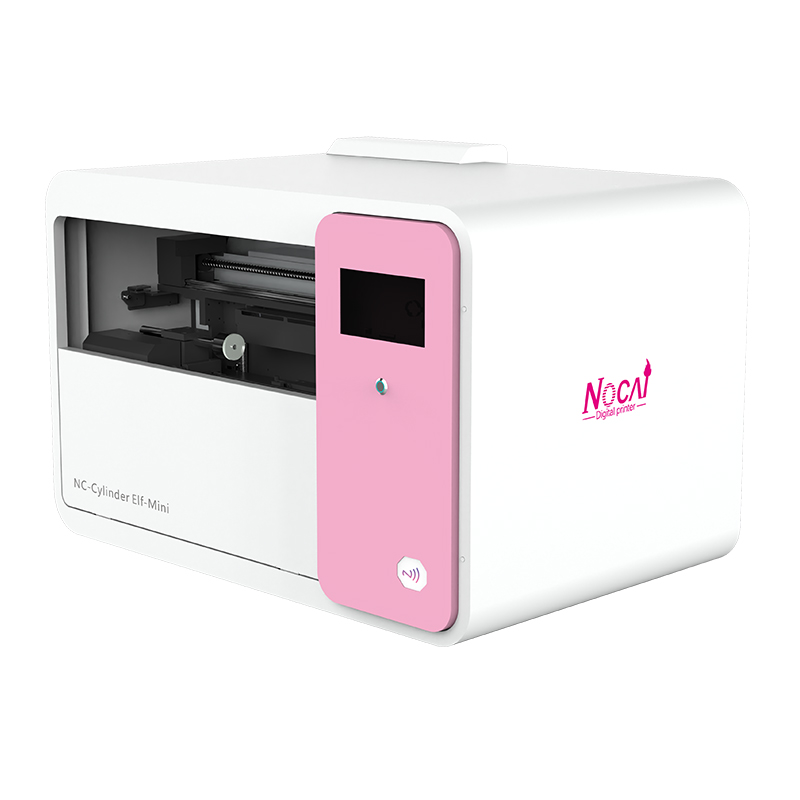

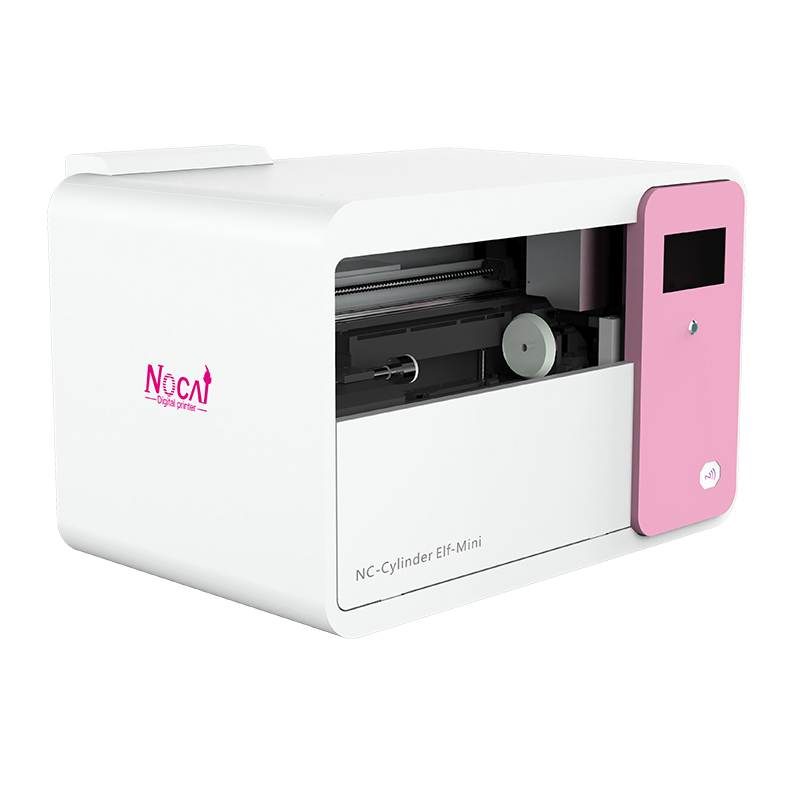

Mini desktop・UV printer for thermos cups NC-Cylinder Elf-mini
Major Advantages
1.4-color + white + varnish, with a maximum printing resolution of 1200dpi, delivering bright colors and natural color transitions.
2.It supports 2-8mm high-drop printing, and the laser can measure shape and positioning intelligently, and has a maximum speed of 30 seconds per unit. It adapts to mass production efficiently and overcomes the challenges of printing special-shaped parts easily.

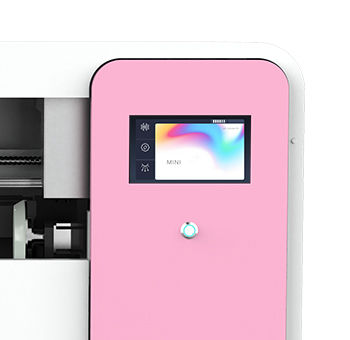

3.It features a compact body that saves space, a high-definition LCD touch screen for responsive operation, and user-friendly design reflected in every detail, delivering an efficient and convenient printing experience.

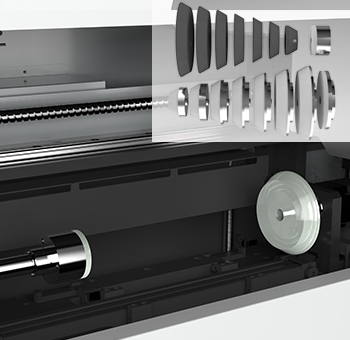

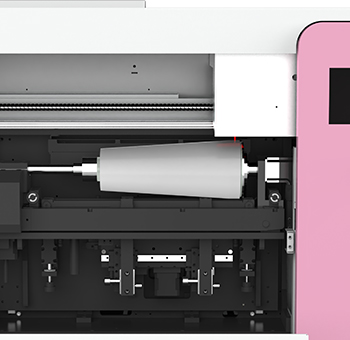

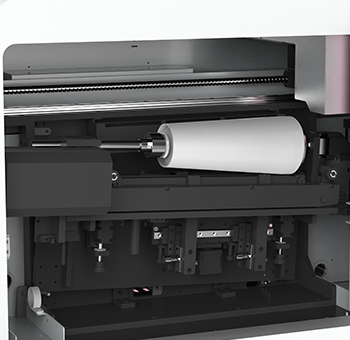

4.It supports 360-degree rotating printing, with flexibly adjustable tilt angle. It bridges height differences accurately and handles the printing of complex special-shaped parts easily.

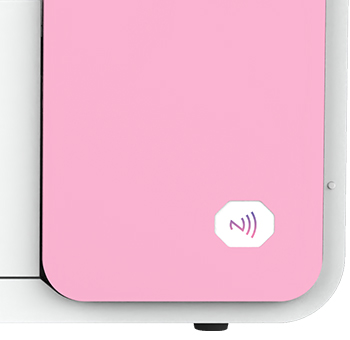

5.Short-range induction activates the ink encryption unit, decrypting anti-counterfeiting information to prevent tampering. Meanwhile, the hardware is bound with authorized ink to prevent abuse, thus ensuring system security and stable printing quality.
Product Details
Parameter
| Print head | Nozzle spray force range | Print length |

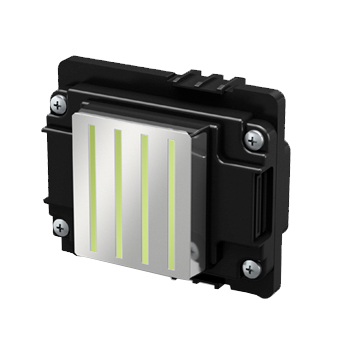

| Epson I3200-U1HD*1 | 2-8mm | 80-280mm |
| Cylinder/cone printing diameter range | Taper printing range | Print version |
| Φ45-100mm | ＜5° | White, color, and varnish are produced at the same time |
| Print mode | Print resolution | Printer dimension |
| CMYK＋W+V | 720*900dpi/720*1200dpi | 657mm*900mm*617mm |
| N.W. | Packing size | G.W. |
| 100KG | 1025mm*780mm*775mm | 125KG |
| Rip software | Print speed range | Graphic format |
| RIIN | 30s-3min/pcs | Tiff,Jpg |
| Connection method | Power | Rated power |
| Network cable | AC220V，50HZ/60HZ | 850W |
| Working environment | operating conditions | Ink type |
| Temperature:25℃-28℃ Humidity:35%-65% | Avoid dusty environment and direct sunlight | Environmental UV curing ink |
Description
This mini desktop UV printer dedicated to thermos cups is equipped with a 1200dpi high-precision print head. Combined with an intelligent operation interface, it integrates functions such as multi-mode printing. It can be used without debugging and supports one-click pattern import for personalized customization. Everything from text to high-definition patterns can be presented accurately, providing an efficient and flexible solution for small-batch thermos cup customization.
