Desktop UV NC-UVDTF30& laminating all-in-one machine

Major Advantages

1. Equiped with the original import stable and durable print head, the highest accuracy up to 1200dpi, high color reproduction and, delicate picture quality; white color and varnish at the same time, dry immediately.

2. UVDTF30 printer can feed, tear film, print, laminate all in one, reduce complicated operation, save time and labor costs. Automatic film-tearing and laminating realizes integrated intelligent production.

3. Printing width of 30CM, unlimited length. Printing thickness in 1mm, crystal DTF products are exquisite, meeting the adhesion needs of most products.

4. Small size, strong adaptability, suitable for shopping malls, scenic spots and other scenes. Intelligent control panel design, one click to complete the test, cleaning, printing, ink filling and other functions, convenient and efficient.

5.Equipped with suction platform and transfer press, make the transfer of materials more smooth, output high-quality products stably; front and rear ruler design, accurate positioning the materials.

ADD TO CART

Product Details

Desktop UV NC-UVDTF30& laminating all-in-one machine

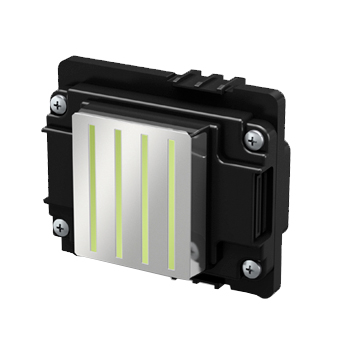

Equipped with an Epson I3200-U1HD print head, supporting white varnish printing.

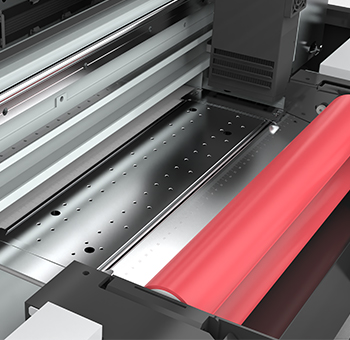

Equipped with suction platform and transfer press, make the transfer of materials more smooth, output high-quality products stably during printing; front and rear ruler design, accurate positioning the materials.

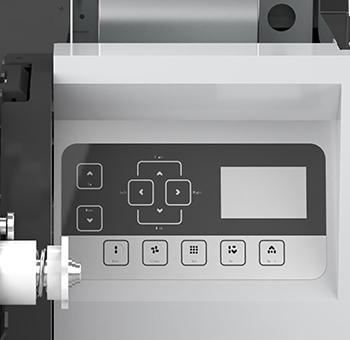

The control panel has various functions and the display is simple and easy to understand.

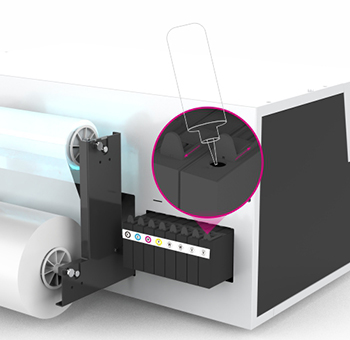

Intelligent ink filling system to prevent ink leakage and wro-ng filling. At the same time, it has the functions of automatic ink circulation and ink shortage alarm to prevent ink precipi-tation, and the intelligent reminder is more convenient.

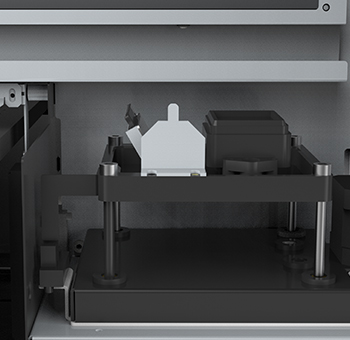

The design of the lifting ink station accurately controls the position of the head sealing and comprehensively protects the print head.

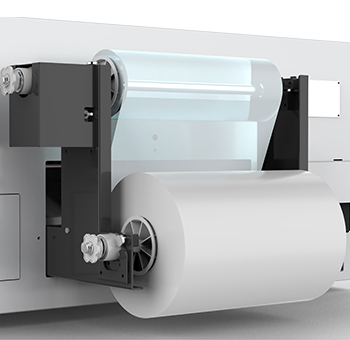

UVDTF30 printer can feed, tear film, print, laminate all in one, reduce complicated operation, save time and labor costs.

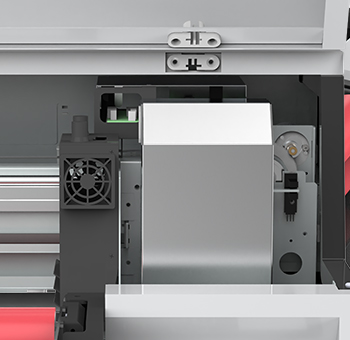

It adopts air-cooled UV lamp, which can automatically adjust the UV lamp power and dry immediately.

Parameter

Printhead configuration	Nozzle spray force range	Print size
EPSON I3200-U1HD*1	2-3mm	30cm
Print height	Print version	Print mode
0-1mm	White and color and varnish print at same time	KCMY+W+V
Print resolution	Printer dimension	N.W.
960x1200dpi / 960x900dpi	919mm980mm450mm	75kg
Packing size	G.W.	Rip software
1070mm1095mm620mm	100kg	Future RIP
Applicable materials	Print speed	Graphic format
DTF AB film、release film、advertising soft roll material etc.	1.34-4.96m/h	Tiff/Jpg
Connection method	Power	Rated Power
Gigabit Ethernet cable	AC220±10，50HZ~60HZ	Maximum404
Laminating Temperature	Working environment	Ink type
60-80℃	Temperature:25℃-28℃ Humidity:35%-65%	UV DTF film specialized uv cured ink

Description

Meeting medium- and small-sized customer’s personalized customization,with high-precision, intellectual and versatile features.It can print single lable and LOGO, support a variety of materials adhesion, strong flexibility.The integrated machine design realizes the integration of printing, laminating and rewinding, simplifies the operation and reduce the cost.
