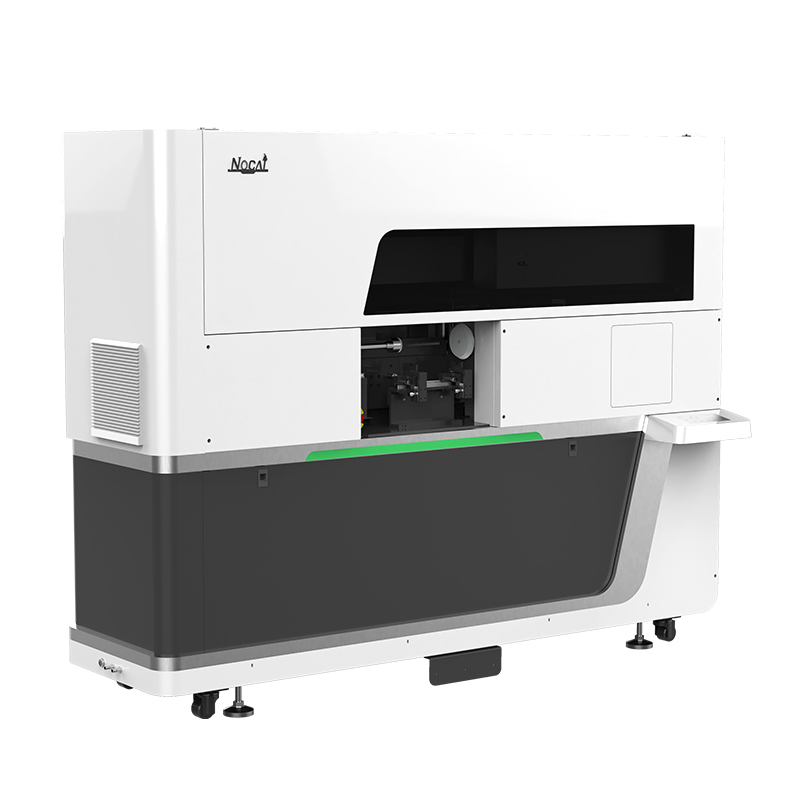

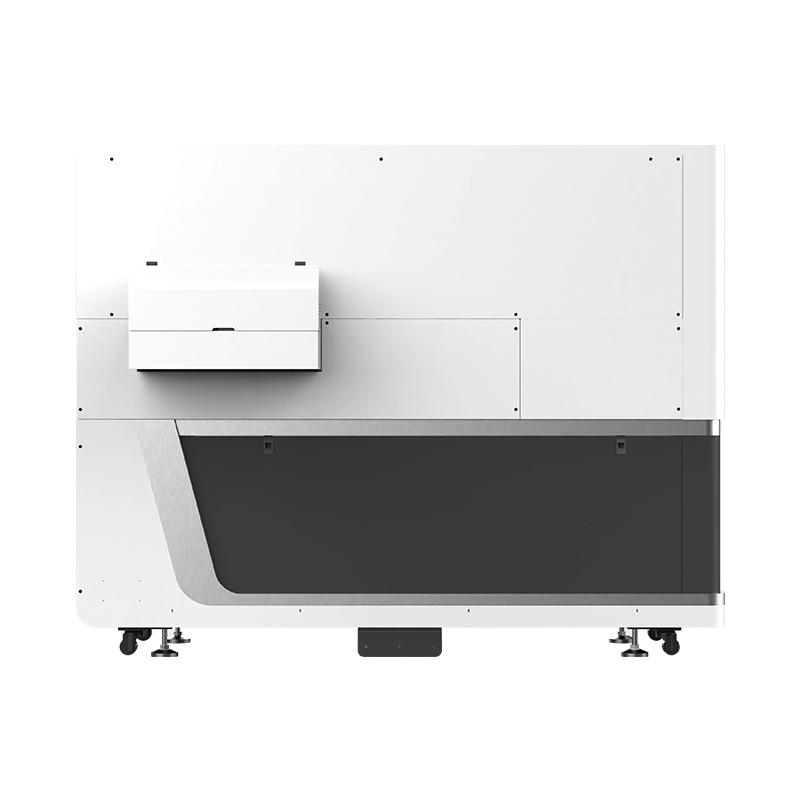

NC-CylinderElf-IV-D-Nuocai Product Detailed Information – UV Flated Printer

Major Advantages

1.6 RICOH GEN6 print heads, the function is distributed reasonably, with high precision and long service life. 6 colors + white + varnish + primer, rich in color and natural transition.

2.It supports 2-13mm high-drop printing, and the laser can measure product shape automatically, it can be positioned accurately to meet the printing needs of special-shaped products easily.

3.With a printing length of 80-280mm and a diameter of 45-160mm, it is suitable for insulated cups and pots, cylindrical electronic products, ceramic wine bottles, etc.

4.It supports 360°rotation printing to cover the surface of curved special-shaped products accurately; The speed can reach up to 30 seconds per piece, it is suitable for mass production mode.

5.The tilt control button can adjust the tilt angle flexibly according to different shapes of the product, reducing the printing drop effectively , so as to achieve the tilt printing effect smoothly .

ADD TO CART

Product Details

NC-CylinderElf-IV-D-Nuocai Product Detailed Information – UV Flated Printer

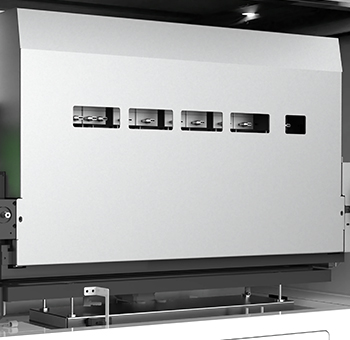

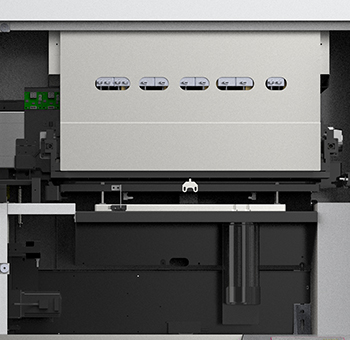

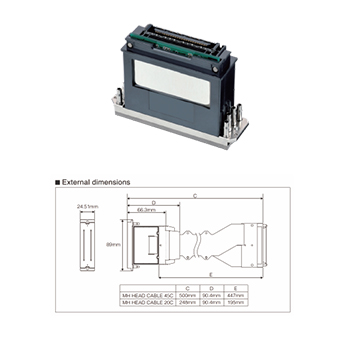

Adopting 6 RICOHGEN6 print heads, with reasonable function distribution, high precision and long service life, 6 colors + white + varnish+primer, rich color and natural transition.

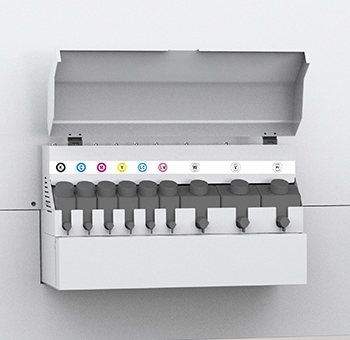

The negative pressure ink supply system is used to make the ink supply more stable. The secondary ink cartridge and bottom plate have heating functions and intelligent temperature control, making printing more secure.

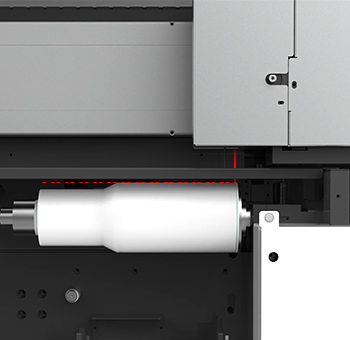

It supports 2-13mm high-drop printing, and the laser can measure product shape automatically, it can be positioned accurately to meet the printing needs of special-shaped products easily.

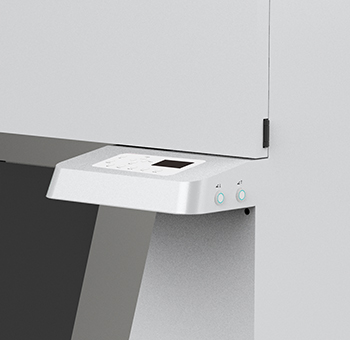

The tilt control button can adjust the tilt angle flexibly according to different shapes of the product, reducing the printing drop effectively , so as to achieve the tilt printing effect smoothly .

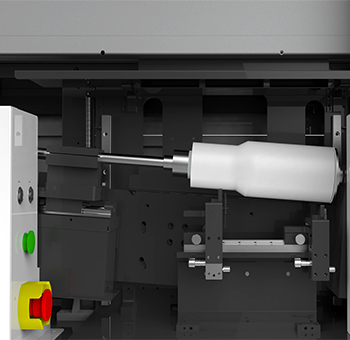

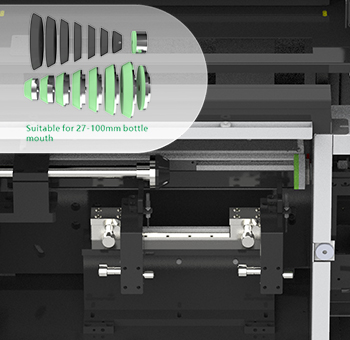

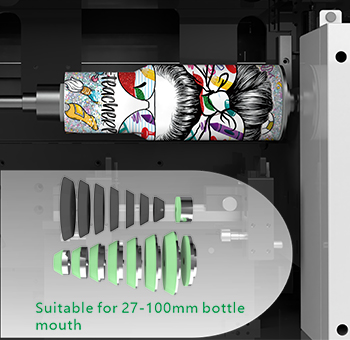

Multi-diameter cylinder jig can meet the printing needs of a variety of products, bottle adjustment fixture is equipped with scale adjustment, which is convenient for operation.

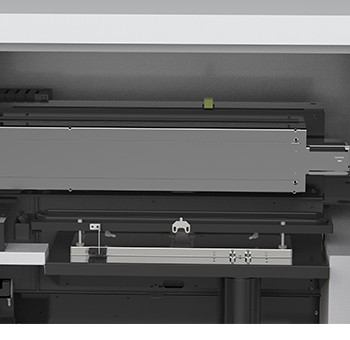

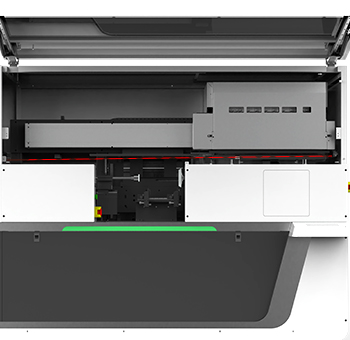

Lifting ink station design can achieve precise heading; The head is equipped with a laser projector, the ink cart will stop automatically once touched.

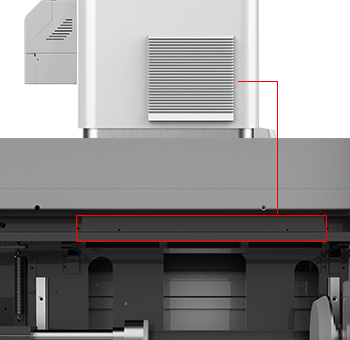

In addition to the anti-static flying ink device, the high-drop hollow pattern can be printed more accurately so that the printing quality can be improved.

Parameter

Print head	Nozzle spray force range	Print length
RICOH GEN65(Standard）/ RICOH GEN66(Optional）	2-13mm	80-280mm
Cylinder/cone printing diameter range	Taper printing range	Print version
Φ45-160mm	＜5°	Primer, white ,color and varnish come out at the same time
Print mode	Print resolution	Printer dimension
CMYKLcLm＋W+V+Pr	720900dpi/7201200dpi	1995mm932mm1535mm
N.W.	Packing size	G.W.
400KG	2.23m1.3m1.72m	/KG
Rip software	Print speed range	Graphic format
RIIN	30s-3min/pcs	Tiff,Jpg,Pdf
Connection method	Power	Rated power
Network cable	AC220V±10，50HZ~60HZ	1500W
Working environment	operating conditions	Ink type
Temperature:20℃-28℃ Humidity:35%-65%	Avoid dusty environment and direct sunlight	Environmental UV curing ink

Description

The high-speed thermos cup digital inkjet printer independently developed by Nocai can realize 360° rotation printing and supports seamless, 5D relief, high drop and other forms of printing. The printing speed is as fast as 30 seconds per piece.
