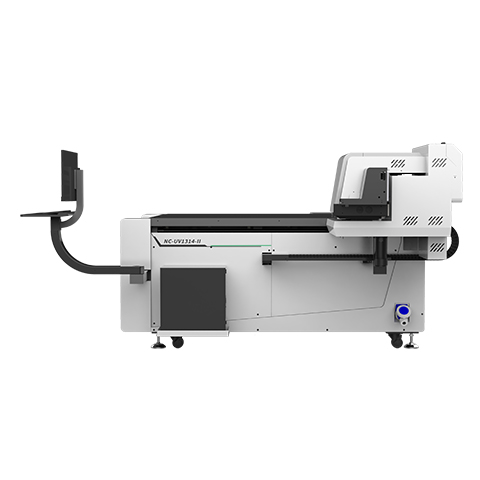

Large format visual positioning digital inkjet printer NC-UV1314-II

Major Advantages

1.4 different printheads, the highest definition is 1200 dpi. White, color and varnish can be printed out at the same time, high color saturation, primer can be printed partially, which saves time and labor cost.

2.High-definition camera scanning，precise recognition of material contour texture；integration with visual software system，changing the history of sets of software interaction, easy and fast operation；the images can locate automatically and accurately，the recognition error is controlled within ±0.1mm.

3.1400X1300mm printing format，0-100mm printing height，meet the printing needs for different industries，with suction platform can make the material flat，printing speed can reach up to 2 square/hour，which is very easy to achieve mass production needs.

4.Controlled by intelligent software which supports 2-12mm high drop printing, reducing the flatness requirements of printing media and meeting the uneven surface printing requirements of some products.

5.The X-axis uses imported double-row guide rails, linear motor drive, and magnetic grid to read data to ensure higher printing accuracy. All-steel integrated structure design, strong stability.Nuocai select material finely and pay attention to the adaptability of the machine, so that the printer can print more stably.

ADD TO CART

Product Details

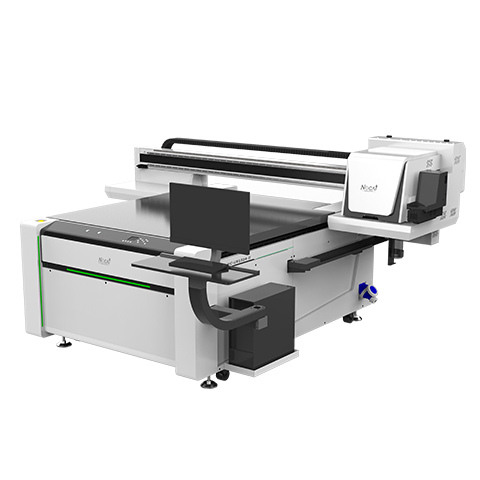

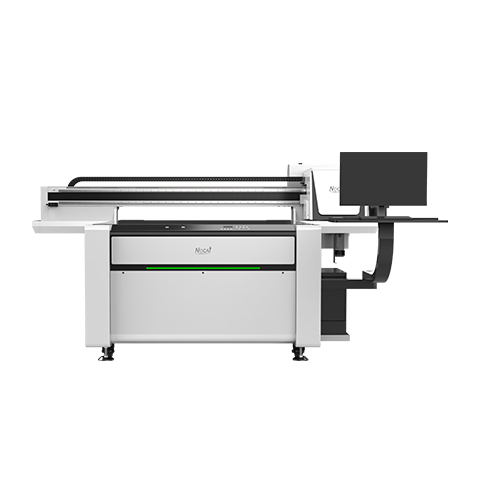

Large format visual positioning digital inkjet printer NC-UV1314-II

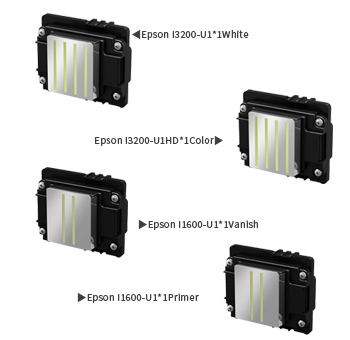

4 different printheads, the highest definition is 1200 dpi. White, color and varnish can be printed out at the same time, high color saturation, primer can be printed partially, which save time and labor cost.

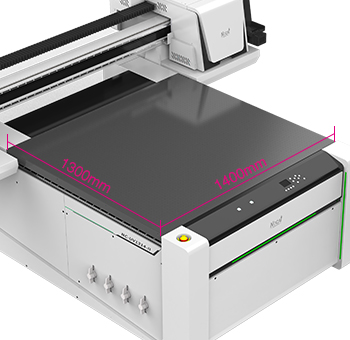

1400X1300mm printing format，meet the printing needs for different industries，with suction platform can make the material flat.

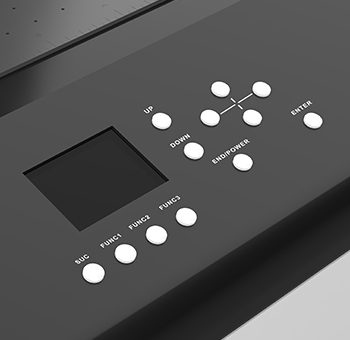

The left and right stretching design of the operation panel avoids operational errors caused by the plate table which will block the panel during machine operation, improving the user experience.

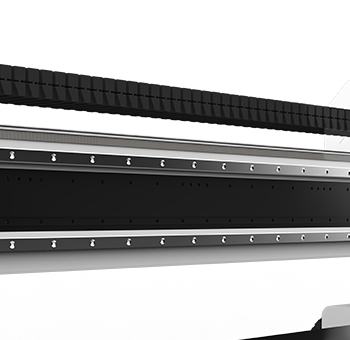

X-axis adopts double-row linear guides,which makes printing more stable and ensures printing accuracy.

High definition camera scanning, precise recognition of material contours and textures, integration of visual software system, changing the interaction history of multiple software sets, easy and convenient operation.

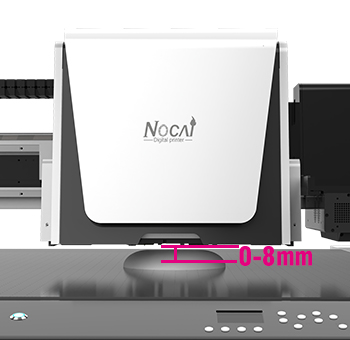

Controlled by intelligent software which supports 2-12mm high drop printing, reducing the flatness requirements of printing media and meeting the uneven surface printing requirements of some products.

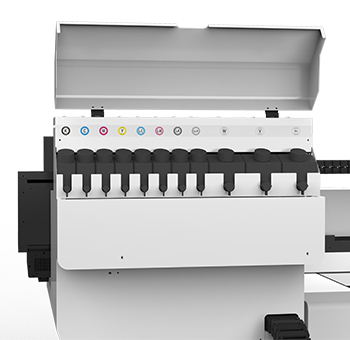

Automatic alarm for lacking of ink, easy to add ink.

Parameter

Print head	Nozzle spray force range	Print size
Epson I3200-U11White Epson I3200-U1HD1Corlor Epson I1600-U11Vanish Epson I1600-U11 Primer	2-12mm	1400*1300mm
Print height	Print version	Print mode
0-100mm	Primer, white ,color and varnish come out at the same time	4C+W/4C+W+V/4C+W+V+Pr/ 8C+W/8C+W+V/8C+W+V+Pr
Print resolution	Printer dimension	N.W.
720900dpi / 7201200dpi	253228361358mm (lncluding computer stand)	653KG
Packing size	G.W.	Rip software
220930101568mm	1067KG	RIIN

Print speed	Graphic format	Connection method
Four – color: 2.98-7.42m/h Eight – color: 1.35-4.19m/h	Tiff,Jpg,Pdf	cable
Power	rated power	Working environment
AC220V，50HZ/60HZ	1900W	Temperature:25℃-28℃ Humidity:35%-65%
operating conditions	Ink type
Avoid dusty environments, Avoid direct sunlight	Environmentally friendly UV curing ink

Description

NC-UV1314-II printer with new visual recognition and positioning function, which can identify position accurately , and solve the problem of product positioning easily; 8 color+W+Varnish+Primer，high color saturation and delicate color, primer can be printed directly, strong adhesion, save time and labor cost; 2-12mm concave and convex printing. It can be used in hardware badges, arts and crafts, advertisements and packaging industries; 1300*1400 mm printing format can achieve mass production.
