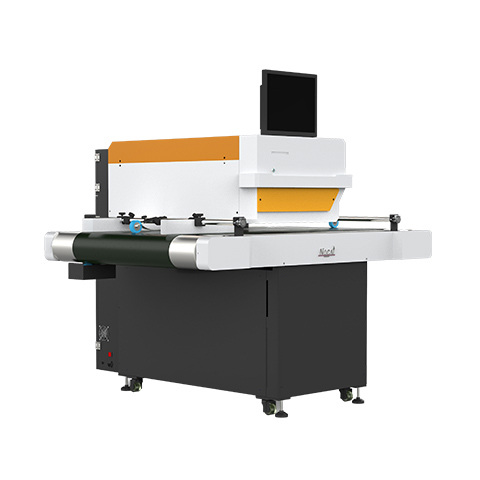

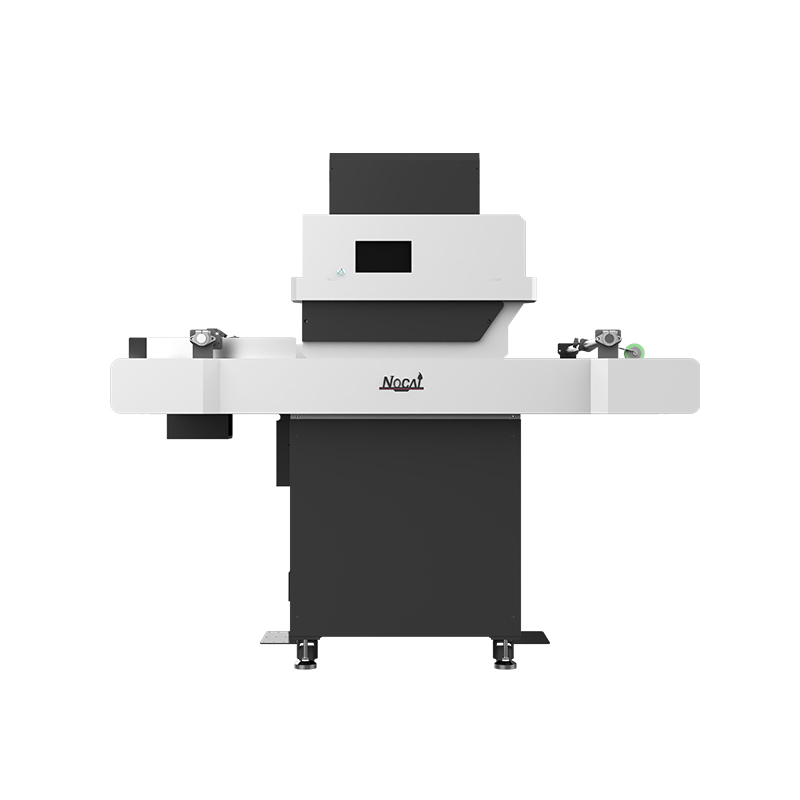

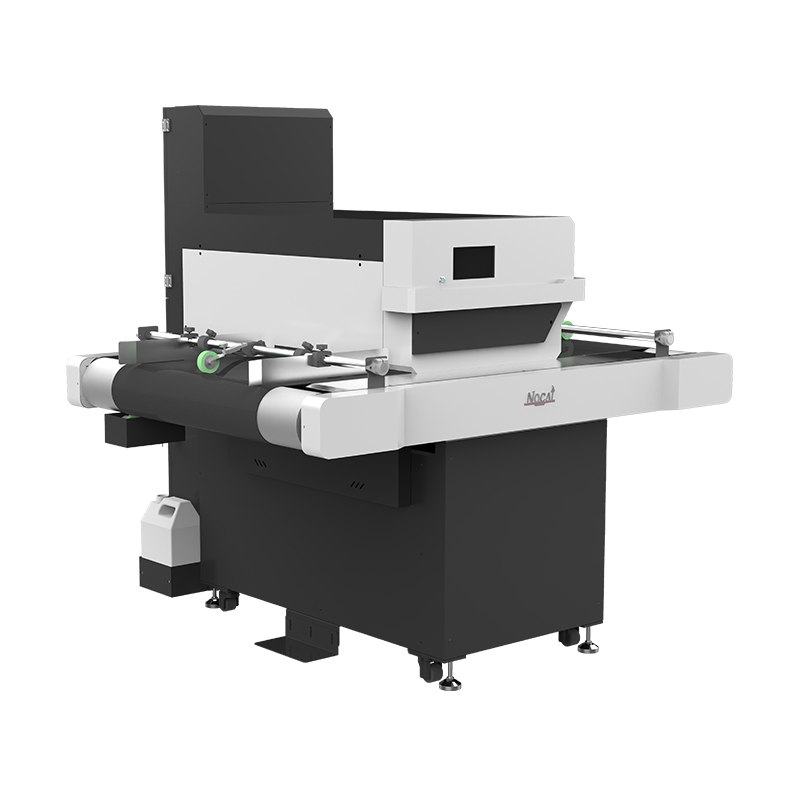

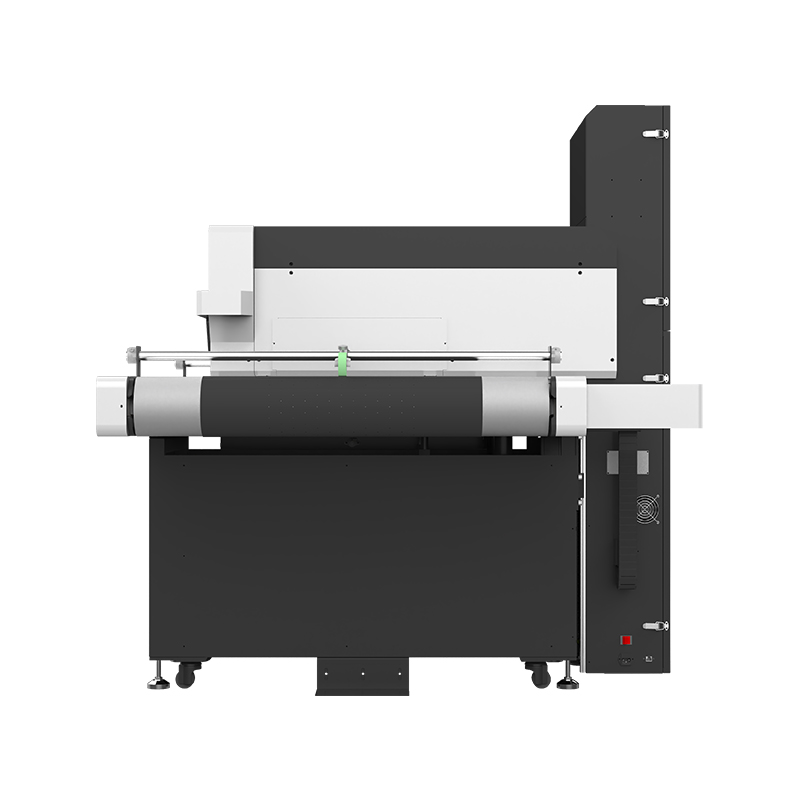

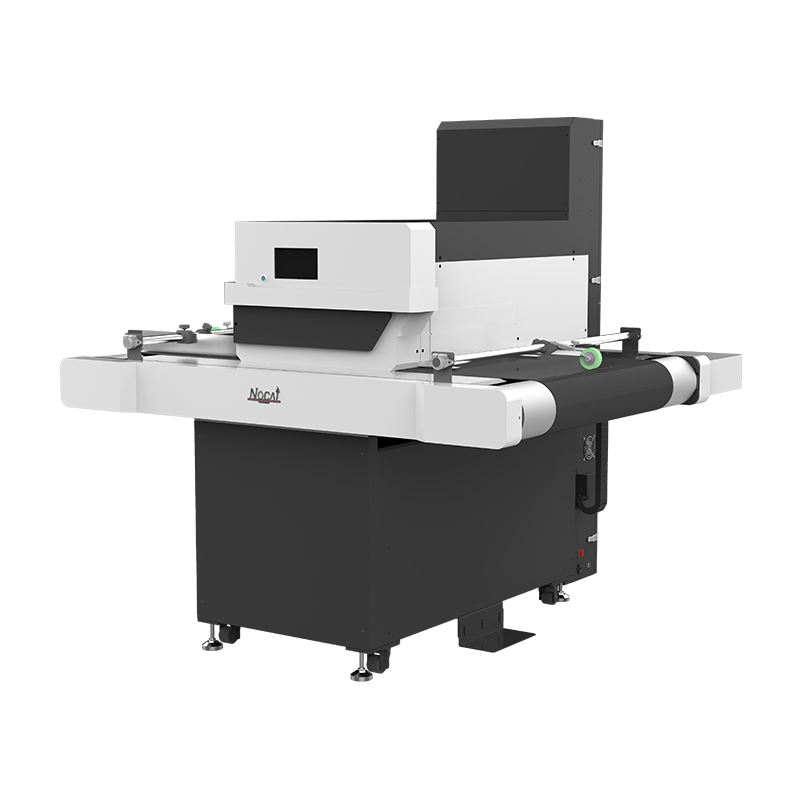

carton printing machine|NC-HIJ-A3

Major Advantages

1.The machine can support various forms of printing, the printing height can reach up to 450mm, and it supports the printing of boxes, folding cartons and other finished products.

2.Realize the intelligent printing of variable elements such as barcodes and serial numbers, and reduce the time cost of sorting one by one.

3.Computer touch screen, printing software interface design is simple and easy to understand, easy to operate.

4.Professional automatic loading and unloading equipment can be customized according to customer needs to improve production efficiency.

5.The material is easily positioned during the feeding process, and there is no need to worry about printing misalignment. It is equipped with a suction platform and a conveyor belt to stably output high-quality finished products.

ADD TO CART

Product Details

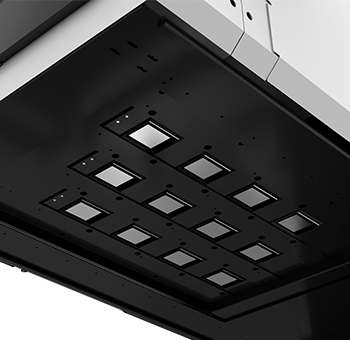

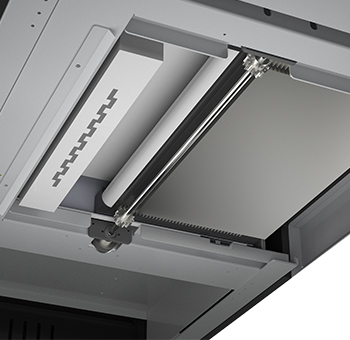

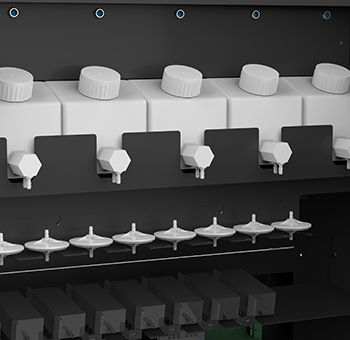

Original modular ink supply, self-contained ink circulation function, cleaning cloth with automatic head seal, automatic ink circulation at regular intervals during standby, prolonging the life of the print head.

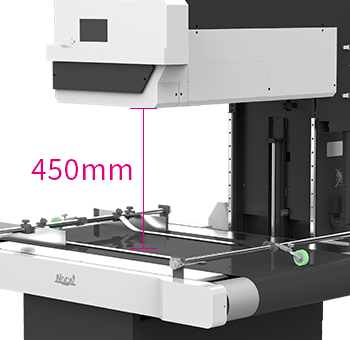

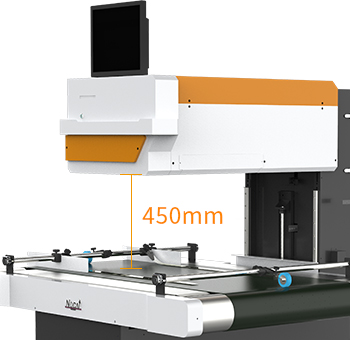

The machine can support various forms of printing, the printing height can reach up to 450mm, and it supports the printing of boxes, folding cartons and other finished products.

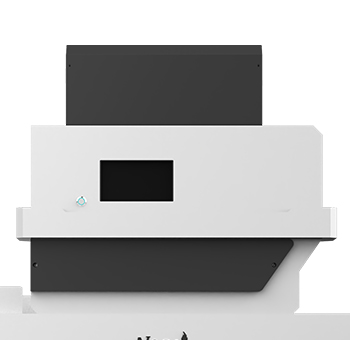

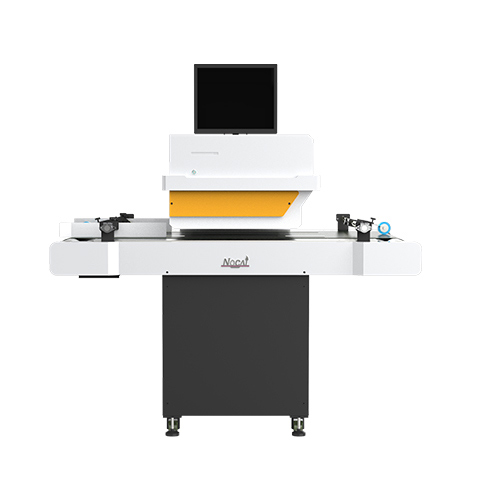

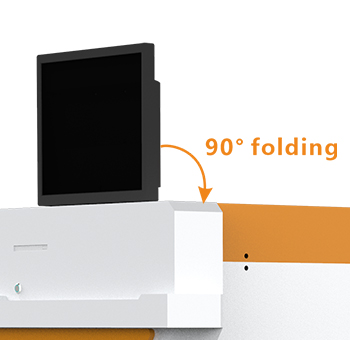

The high-definition LCD touch screen enables sensitive operation, with every detail embodying humanized design, bringing an efficient and convenient printing experience.

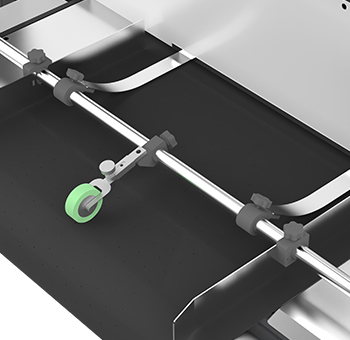

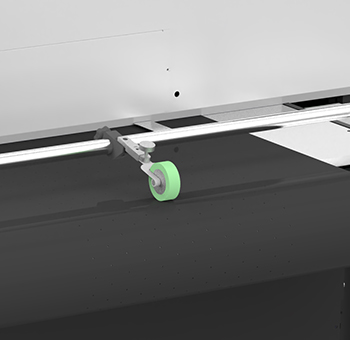

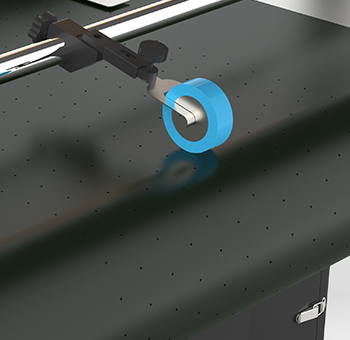

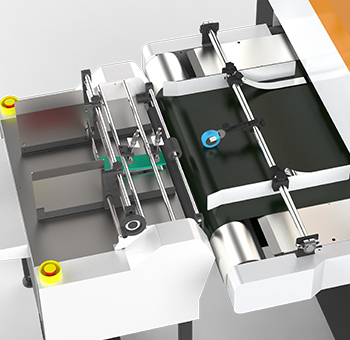

Equipped with positioning guide strips, the materials can be easily positioned during the feeding process, eliminating worries about printing misalignment.

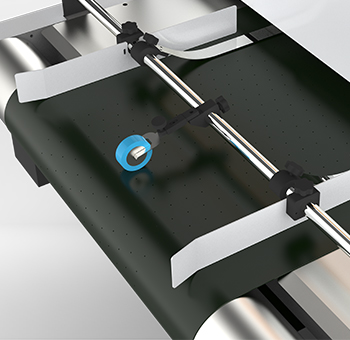

Equipped with a suction platform conveyor belt, it stably outputs high-quality finished products.

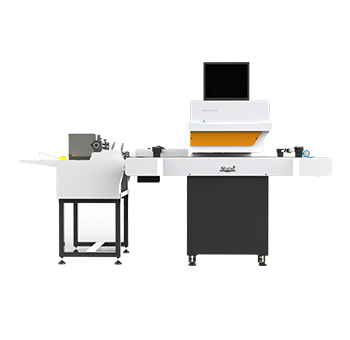

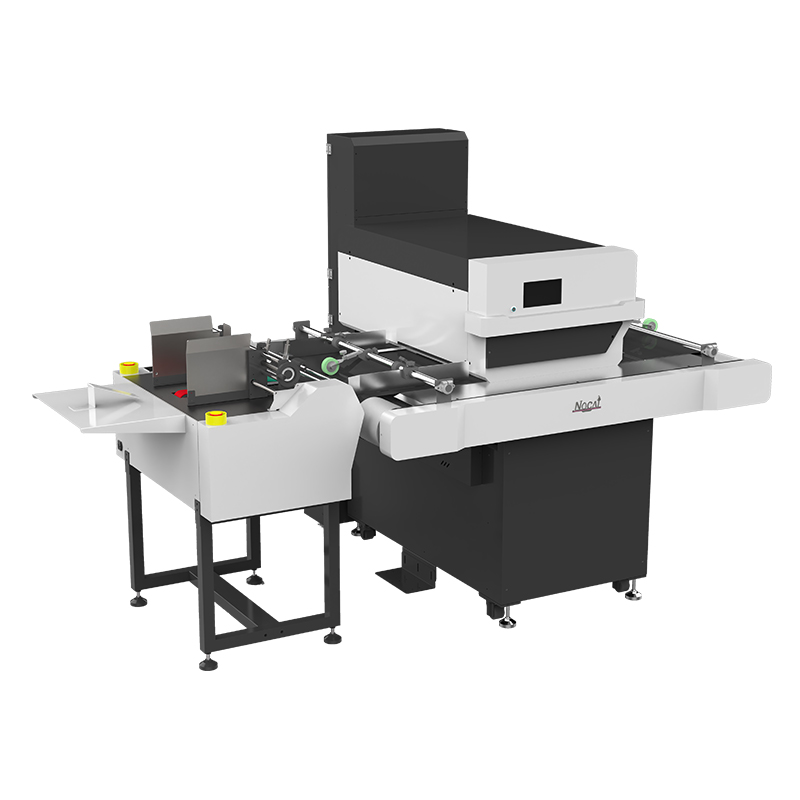

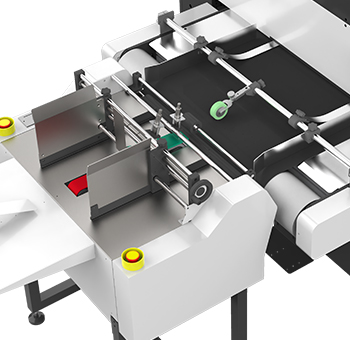

Professional automatic loading and unloading equipment can be customized according to customer needs to improve production efficiency.

Realize the intelligent printing of variable elements such as barcodes and serial numbers, and reduce the time cost of sorting one by one.

Parameter

Print head configuration	Print resolution	Ink type
HP A3 print head*1	1200300dpi / 900300dpi / 600*300dpi	Water-based ink
Ink tank capacity（CMYK）	Print range	Printing material range
1000ml/color	Nozzle print width 405mm	The maximum width of the material is 1000mm, the height is 450mm, and the length is not limited
Applicable material paper	Print thickness	Interface type
Corrugated paper， card paper , kraft paper and other ink absorption paper	450mm	Network cable
Voltage	Rated power	Print method
AC220V，50HZ~60HZ	800W	Color only
Print mode	Printing speed	Print software
CMYK	10~30m/min	Nocai Print Tools
Graphic format	Printer dimension	N.W.
PDF/TIF/JPG	1511mm1595mm1608mm	408KG
Packing size	G.W.	Drying method
1787mm1867mm1890mm	540KG	/
Working environment	operating conditions	Noise
Temperature:20℃-30℃ Humidity:40%-80%	Avoid dusty environments,Avoid direct sunlight	Below 75dB

Description

One-stop packaging and printing solution, with high speed as the core, equipped with intelligent touch screen and automatic loading and unloading to improve efficiency. Environmentally friendly ink is suitable for multiple absorbent materials, supporting small-batch customization and variable data printing, without plate making. The modular maintenance design is convenient, covering multi-industry packaging scenarios, and reshaping the production chain with efficient production capacity and green cost.
