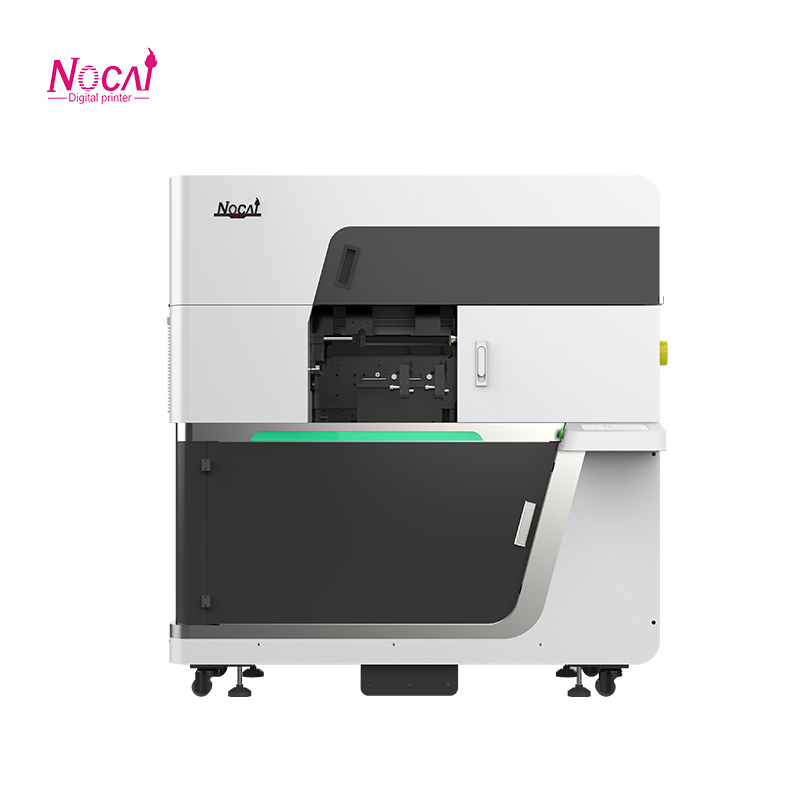

Unveiling 360° Rotary UV Printer: Full Analysis of Cylinder & Cone Printing
In modern personalized customization and industrial printing, high-efficiency, high-precision printing on curved surfaces has long been a key technical focus. The 360° rotary UV printer, with its unique design and advanced technology, stands out as an ideal solution for printing on cylinders, cones and other special-shaped products, delivering exceptional results.
Cylinder Printing: 360° Coverage & Seamless Splicing
Traditional printing struggles to achieve full, continuous pattern coverage on cylindrical items like thermoses, wine bottles and cans due to their curved surfaces. The 360° rotary UV printer, equipped with precision omnidirectional rotation technology, high-accuracy nozzles and an intelligent control system, enables dead-angle-free 360° printing. Its built-in seamless splicing algorithm automatically calculates printing paths based on product dimensions, ensuring natural transitions at pattern joints for an integrated visual effect. It vividly reproduces everything from simple logos to complex gradients and high-definition images.
Cone Printing: Intelligent Adjustment & Precise Adhesion
Printing on cones or cone-shaped items (e.g., tapered cups, vases, cosmetic bottles) is more challenging, as their diameter varies with height. These printers are fitted with tilt angle control and electric taper adjustment functions, flexibly adapting to object shapes and minimizing printing errors caused by height differences. Combined with optional laser auto-height measurement and special-shaped product modeling technology, the machine accurately identifies object contours and adjusts the nozzle-to-surface distance in real time. This ensures precise ink adhesion and distortion-free printing even within a height difference range of 2–13mm.
Wide Compatibility & Cross-industry Empowerment
Technically, the printer supports cylindrical and conical items with a diameter of 45–160mm and length of 80–280mm, and handles cones with a taper of ≤5°. It serves multiple industries:
- Wine packaging: Ceramic wine bottles, metal bottle caps, painted wine bottles
- Daily consumer goods: Thermoses, sports bottles, pen holders, small speakers
- Packaging materials: Tea cans, spray bottles, toothpaste tubes
- Home decoration: Ceramic flower pots, glass vases, bamboo and wood utensils
Compatible with stainless steel, plastic, ceramic, wood and other materials, it uses eco-friendly UV inks and water-cooled curing technology for strong adhesion, wear resistance and durability.
Core Technologies: Precision, Efficiency & Stability
High-quality curved surface printing relies on integrated technologies:
- High-precision nozzles(e.g., Ricoh): Deliver delicate colors and smooth transitions
- Intelligent temperature & ink supply control: Negative pressure ink supply combined with constant temperature control ensures stable long-term output
- Multi-layer safety protection: Laser collision avoidance and auto-stop functions protect nozzles
- High-speed printing: As fast as 30 seconds per item, suitable for batch production
In conclusion, the 360° rotary UV printer excels at both cylinder and cone printing, meeting diverse personalized printing needs with high precision, efficiency and material adaptability. It turns complex curved surface printing challenges into simple, efficient workflows, creating new creative possibilities and commercial value for gift customization, product packaging and home decoration industries. For those seeking a solution to break flat printing limitations and realize true 3D printing, this equipment is a reliable choice.
